Follow one trailer through the site and the scope writes itself

The fastest way to scope a distribution center is to trace a single load from the highway to the aisle and ask, at each handoff, what has to be known and what has to be provable. Every camera, reader, gate and alarm point on a good design answers a question raised somewhere along that path.

The approach

Drayage rolling off I-95 and I-16 behind the Savannah container terminals arrives differently from a scheduled line-haul into an I-85 or I-285 building in metro Atlanta, or a regional run down I-75 into Macon. Queue length on the public road is the constraint nobody designs for until it happens. If the gate slows down, trucks stack onto a right-of-way, and the fallback procedure for a system outage matters more than the credential technology.

The gate

License plate recognition reads a tractor. It does not read a load. On drayage, the tractor plate has no reliable relationship to the container or chassis on it, so plate data has to be reconciled against an appointment number, a carrier and a driver identity captured at check-in — typically through an intercom and a staffed or remote decision. Build the exception path first: what happens for an unrecognized vehicle, an early arrival, a driver with no appointment, or a communications failure. Gate operators carry entrapment protection obligations that must remain intact after any integration work.

The yard

Yards change shape hourly. A camera view surveyed in an empty yard becomes a view of the side of a trailer once operations start, which is why fence-line detection and yard surveillance are separate problems with separate answers. Trailer staging, seal integrity checks, outdoor storage and employee parking each need their own decision about whether the goal is detection, assessment or identification.

The dock

A load discrepancy is reconstructed from a timeline, not from a wide shot. Useful dock coverage combines door position, trailer presence, leveler and restraint state, and a video view that shows goods crossing the threshold, all sharing a synchronized clock. Equipment inside a dock is in the strike zone for forklift masts and dock mechanisms, so mounting height and protection are design decisions rather than field improvisation.

The interior

• Receiving and staging. Where discrepancies originate and where video has to be continuous with the dock view.
• High-value cage and returns. Restricted by role and schedule, with logs that match camera coverage of the opening.

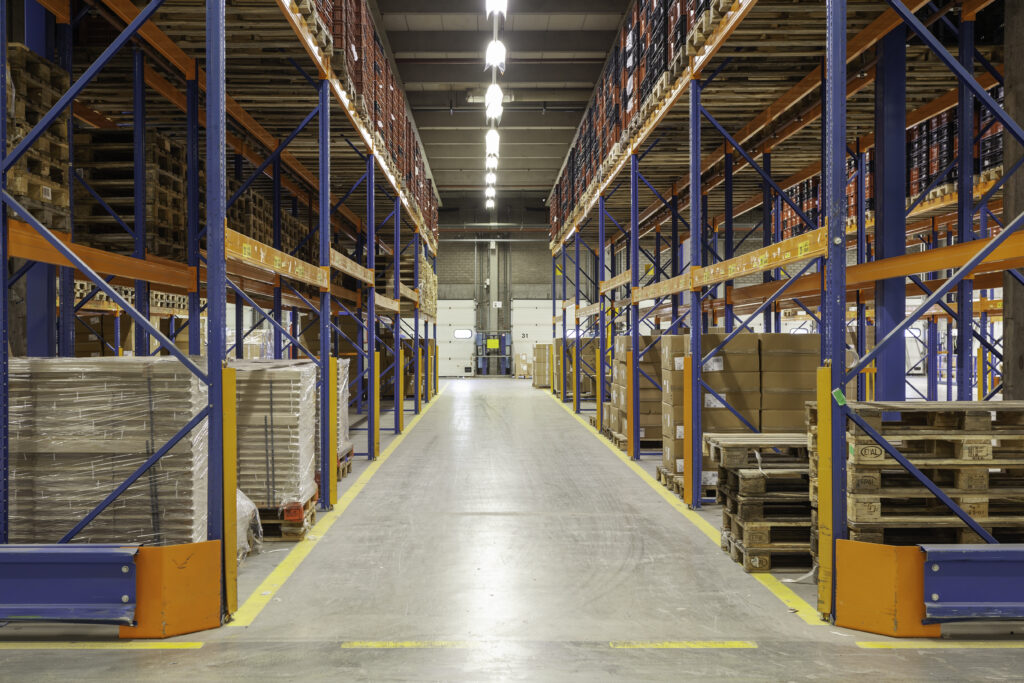

• Reserve and pick. Racking blocks sightlines; a survey performed in an empty building is a survey of a building that will never exist again.
• Network and utility rooms. The recorders and switches deserve the same access discipline as the cage.

The environment, in Georgia

Dock doors stand open through August humidity, so unconditioned high-bay space swings through dew point regularly and condensation forms inside enclosures that were never rated for it. Spring pollen loads housing filters and fan intakes. Summer lightning finds long copper runs to gates, fence lines and yard poles, which is an argument for fiber to the perimeter and surge protection at both ends of anything that stays copper. Buildings on the coastal plain behind Savannah need generator-backed head-end power and a written storm shutdown and restart sequence. Devices mounted at high-bay heights require a lift to service — decide at design time whether you are willing to pay for that access every time a lens needs cleaning.

Ownership after handover

The closeout that matters names who maintains driver and carrier lists, how temporary credentials expire on their own, who reviews coverage after a rack reconfiguration, who cleans lenses and checks enclosure heaters, and where yard layouts and high-value locations are stored as protected records.
